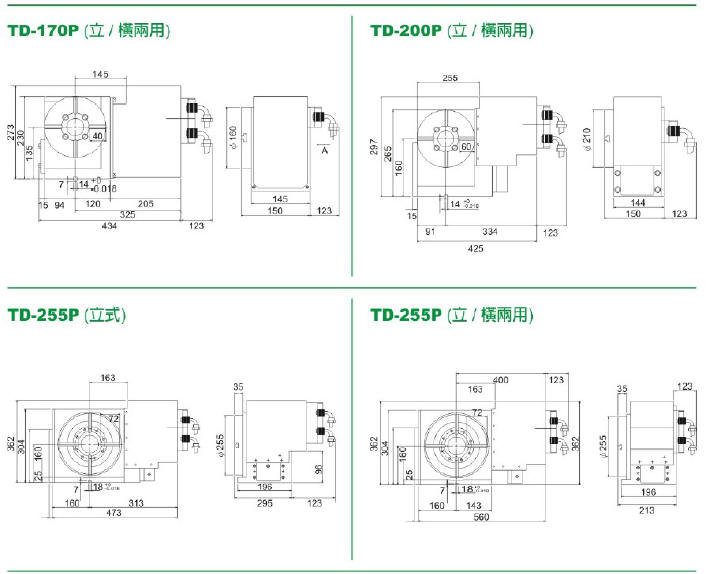

MODEL |
YTD-170P |
YTD-200P(-V) |
YTD-255P(-V) |
|
Stand method |
Vertical and Horizontal |
Vertical and Horizontal , (-v) only for vertical |
|
Lock System |
5
kg/cm2 |
5 kg/cm2 |
|
Table dimension |
Φ160
mm |
Φ210
mm |
Φ255
mm |
|
Table Center
Hole Diameter |
Φ40
mm |
Φ40
mm |
Φ80
mm |
|
Table Center
Hole Diameter |
Φ50
H7 mm |
Φ50
H7 mm |
Φ80
H7 mm |
|
Center Height of
Vertical Position |
135
mm |
160
mm |
160
mm |
|

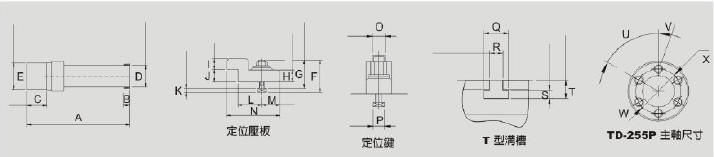

Table T-Slot
Width |
D12
H7 mm |
D12
H7 mm |
D12
H7 mm |
|
Standard guide
block Width |
D14
H7 mm |
D18H7 mm |
D18
H7 mm |
|
Servo Motor
(FANUC series) |
α3
/α4i |
α3
/α4i |
α6
/α8i |
|
Servo Motor
(MITSUBISHI series) |
HF53T/
HC052 |
HF53T/
HC102 |
HF103T/
HC152(102) |
|
Gear Ratio |
1/90 |
1/90 |
1/180 |
|
Total speed
(Motor 2000rpm)
Rotation Speed |
22.2(0.87) |
22.2(0.87) |
11.1(0.44) |
|
Total speed
(Motor 3000rpm) Rotation Speed |
33.3(1.31) |
33.3(1.31) |
16.7(0.66) |
| Minimum input increment |
0.001° |
0.001° |
0.001° |
|
Indexing
accuracy (accumulative ) |
30 |
30 |
15 |
| Repetitive accuracy |
± 4" |
± 4" |
± 4" |
|
Clamping force |
8
kgf/m |
8 kgf/m |
45
kgf/m |
|
Clamping Torque
force |
17
kgf/m |
17
kgf/m |
47 kgf/m |
|
Vertical Load Capacity
(Tailstock used) |
40
kg / 80 kg |
50
kg / 100 kg |
100
kg / 250 kg |
|
Horizontal Load Capacity |
150
kg |
150
kg |
250
kg |
|
Net Weight
(Non-motor Weight) |
42
kg |
50
kg |
105
kg |
