Manual Gear Coupling Index Table |
|
|
|
|
 |
| |
|

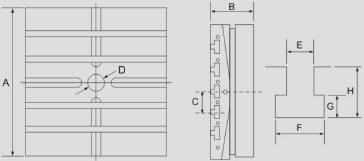

單位:mm |
 |
|
TYPE |
A |
B |
C |
DH7 |
EH7 |
F |
G |
H |
|
YSCT450 |
450 |
170 |
100 |
30 |
18 |
28 |
12 |
30 |
|
YSCT600 |
600 |
200 |
100 |
40 |
20 |
25 |
14 |
34 |
|
YSCT800 |
800 |
280 |
100 |
60 |
22 |
38 |
15 |
38 |
|
YSCT1000 |
1000 |
300 |
150 |
60 |
22 |
38 |
15 |
38 |
|
YSCT1200 |
1200 |
340 |
200 |
80 |
22 |
38 |
15 |
38 |
|
|
| |
|
Criteria/TYPE |
UNIT |
YSCT-450 |
YSCT-600 |
YSCT-800 |
YSCT-1000 |
YSCT-1200 |
| Table Plate Size (LxW) |
mm |
450X450 |
600X600 |
800X800 |
1000X1000 |
1200X1200 |
|
Table Center Hole Diameter |
mm |
Φ 30H7 |
Φ
40H7 |
Φ
60H7 |
Φ
60H7 |
Φ
80H7 |
| Table overall Height |
mm |
170 |
200 |
280 |
300 |
340 |
|
Table T-Slot Width |
mm |
18H7 |
20H7 |
22H7 |
22H7 |
22H7 |
| Driving of up and down(Clamp/Unclamp) |
|
Pneumatic Pressure Required 5~8 kgf/cm2 |
| Driving of Rotation |
|
Manual |
| Table Max. Division |
division |
72
/ 360 |
|
Minimum Index |
division |
5°
/ 1° |
| Indexing Accuracy (Accumulative) |
sec. |
±
2" |
|
Repetitive Accuracy |
sec. |
± 1" |
| Clamping Force |
kg |
2200 |
3200 |
5400 |
6000 |
8100 |
|
Theoretical vertical loading |
kg |
2400 |
3400 |
4500 |
6000 |
7000 |
| Load capacity of Horizontal |
kg |
1000 |
2000 |
3000 |
5000 |
6000 |
|
Net Weight |
kg |
200 |
400 |
900 |
1200 |
2000 |
|
|
|
|
