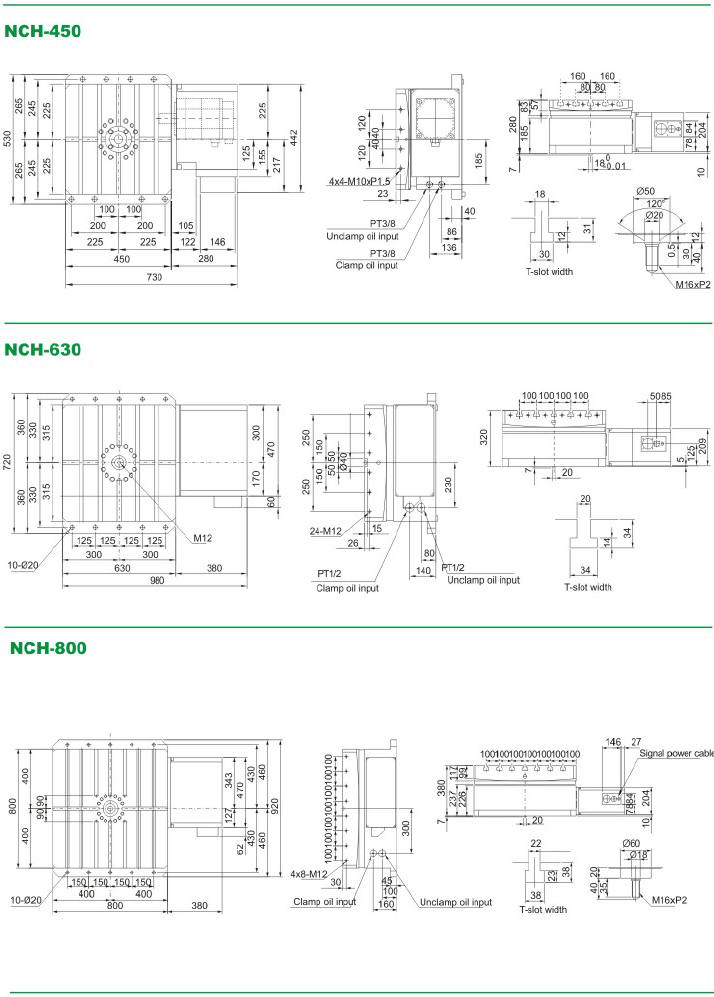

NC Horizontal Gear Index Table |
|
|
|
|
 |
| |
|
單位:mm |
|
Model |
unit |
YNCH-450 |
YNCH-630 |
YNCH-800 |
| Table Plate size (L XW) |
mm |
450x450 |
600x600 |
800x800 |
|
Table Center Hole
Diameter |
mm |
Φ50H7 |
Φ40H7 |
Φ60H7 |
| Table overall Height |
mm |
280 |
320 |
380 |
|
Table T-Slot Width |
mm |
18H7 |
20H7 |
22H7 |
| Standard guide block
Width |
mm |
18H7 |
20H7 |
20H7 |
|
Hydraulic Pressure |
kg-cm2 |
35 |
35 |
35 |
| Table max. Division |
division |
72
360 |
72
360 |
72
360 |
|
Minimum input increment |
degree |
5°
1° |
5°
1° |
5°
1° |
Total speed
(Motor 2000rpm) |
Rotation Speed |
RPM |
16.6 |
11.1 |
16.6 |
|
Gear
Ratio |
|
1/120 |
1/180 |
1/180 |
Servo Motor
(Optional)
|
FANUC |
|
α
12 |
α
12 |
α
22 |
|
MITSUBISHI |
|
HA-100 |
HA-100 |
HA-200 |
|
SIEMENS |
|
1FK6083 |
1FK6083 |
1FK6101 |
|
Rotation Torque |
kgf-m |
200 |
280 |
430 |
| Indexing accuracy (accumulative ) |
sec |
±
4" |
±
4" |
±
4" |
|
Repetitive accuracy |
sec |
±
1" |
±
1" |
±
1" |
| Vertical torque(clamp status) F |
kgf |
2500 |
4000 |
6000 |
| Horizontal torque (clamp status) FxL |
kgf-m |
500 |
600 |
800 |
| Horizontal Load Capacity |
Kg |
1200 |
2500 |
4000 |
| Net Weight |
kg |
300 |
550 |
1000 |
|
|
| |
 |
| |
|
