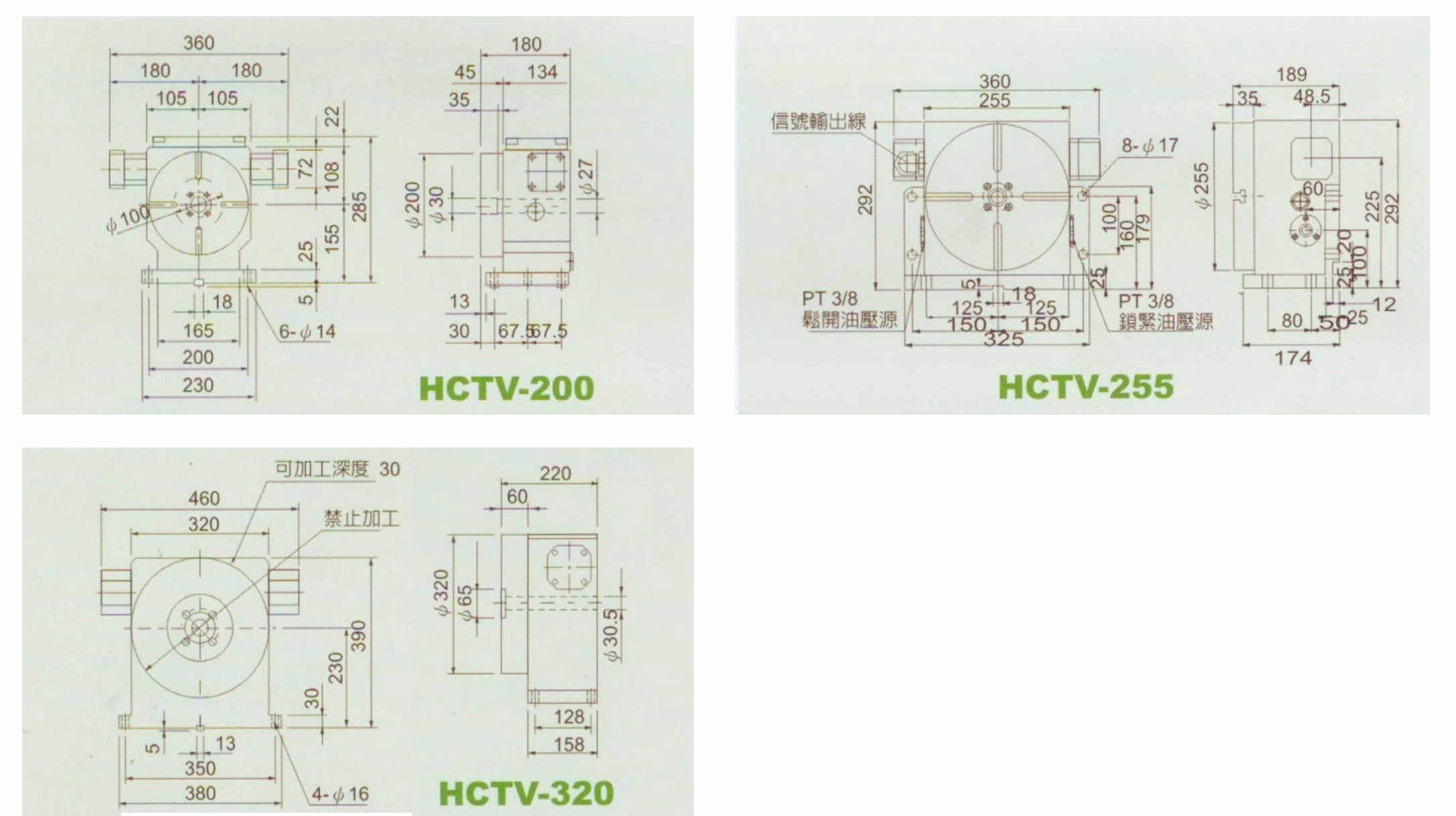

Auto Gear Index Table
(Vertical/Horizontal) |
|
|
|
|
 |
| |
|
單位:mm |
|
Model |
unit |
YHCTV-200 |
YHCTV-255 |
YHCTV-320 |
| Stand method |
|
Vertical and
Horizontal |
| Hydraulic Pressure |
kg/cm2 |
Hydraulic 35 kg/cm2 |
| Table Diameter |
mm |
Φ
200 |
Φ
250 |
Φ
320 |
|
Table Center Through
Hole Diameter |
mm |
Φ30H6 |
Φ30H6 |
Φ65H6 |
| Table Center Hole
Diameter |
mm |
Φ27 |
Φ27 |
Φ31 |
|
Center Height of
Vertical Position |
mm |
160 |
160 |
230 |
| Standard guide block
Width |
mm |
18H7 |
18H7 |
18H7 |
|
Table T-Slot Width |
mm |
12H7 |
12H7 |
14H7 |
| Index number (standard) |
division |
Standard division : 4,6,8,12,24 |
| Index number (available) |
division |
Special division : 2, 3, 5, 9, 10 |
| Indexing accuracy (accumulative) |
sec |
± 4" |
| Repetitive accuracy |
sec |
± 2" |
| Load Capacity |
Vertical
(Tailstock used) |
kg |
100
(250) |
125
(250) |
175
(350) |
|
Horizontal |
kg |
250 |
300 |
350 |
| Net Weight |
kg |
50 |
85 |
98 |
|
|
| |
 |
| |
|
