Rotary Tailstock (Hydraulic lock)

                單位:mm
Model Lock System Table Diameter  Center height Clamping force Net Weight
YDT-135 pneumatic 5~8 kg/cm2 Φ 200 mm 135 mm 16 Kgf/m 22 Kg
YDT-160AP pneumatic 5~8 kg/cm2 Φ 200 mm 160  mm 16 Kgf/m 25 Kg
YDT-160P pneumatic 5~8 kg/cm2 Φ 250 mm 160  mm 45 Kgf/m 70 Kg
YDT-160AH hydraulic 35 kg/cm2 Φ 200 mm 160  mm 30 Kgf/m 25 Kg
YDT-160H hydraulic 35 kg/cm2 Φ 250 mm 160  mm 50 Kgf/m 70 Kg
YDT-210 hydraulic 35 kg/cm2 Φ 320 mm 210  mm 85 Kgf/m 115 Kg
YDT-255A hydraulic 35 kg/cm2 Φ 320 mm 255  mm 85 Kgf/m 130 Kg

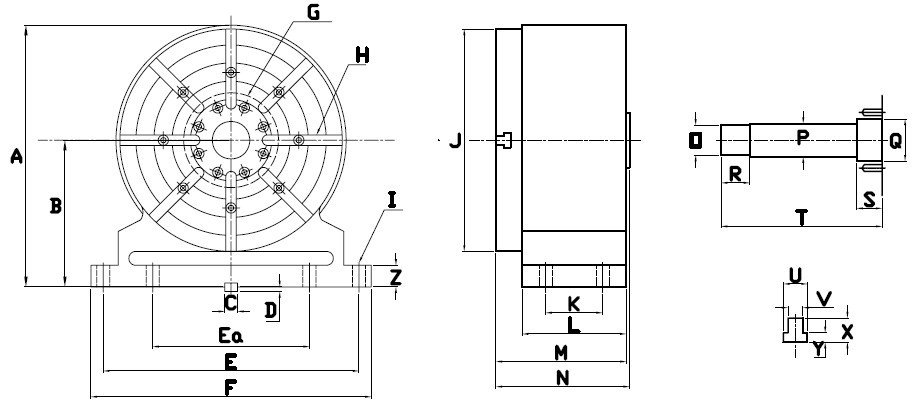

Model DT-135 DT-160A P/H DT-160 P/H DT-210 DT-255A
A 220 245 295 375 420
B 135 160 160 210 255
C 14 18 18 18 18
D 7 7 7 7 7
E 200 200 200 360 360
Ea 130 130 - - -
F 245 245 270 400 400
G Φ 80 Φ 80 Φ 111 Φ 102 Φ 102
H 4 4 4 8 8
I 4-Φ 14 4-Φ 18 4-Φ 18 4-Φ 18 4-Φ 18
J Φ 170 Φ 170 Φ 255 Φ 320 Φ 320
K 69 69 84 85 85
L 95 95 124 153 153
M 101 101 171 194 194
N - - 175 - -
O Φ 50 Φ 50 Φ 80 Φ 40 Φ 40
P Φ 20 Φ 20 Φ 55 Φ 42 Φ 42
Q Φ 20 Φ 20 Φ 55 Φ 50 Φ 50
R 24 24 65 35 35
S - - - 30 30
T 101 101 175 192 192
U 19 19 19 23 23
V 12 12 12 14 14
X 19 19 19 23 23
Y 8 8 8 9 9
Z 25 25 25 30 30
